Medical AC/DC Power Supply

Adherence to stringent safety standards is critical in the design and production of medical grade power supplies. Enedo's portfolio of medical grade power solutions meets the latest IEC/EN 60601-1 safety standards, including 2x MoPP certifications and BF apparatus compliance. By using pre-approved products, designers can eliminate risks and speed compliance, without jeopardizing target launch dates.

Enedo Official Website

ImageProduct CategoryManufacturerTotal Power (W)Form FactorNumber of OutputsOutput (VDC) 1Output (A) 1CertificationsProtection ClassV(in) Min (VAC)V(in) Max (VAC)Leakage Current (µA)Applied Part% Typ Efficiency

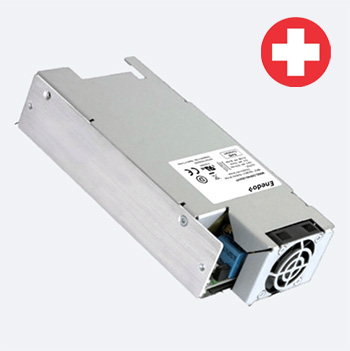

MDP Series - FF

Enedo400 to 1000Enclosed w/ Fan112 to 488.3 to 41.72xMOPP, 60601-1 3rd Edition, AAMI, ANSI, CE, CSA, CUL, EN, ES, IEC, UL2xMOPP85 to 90264130 to 300Type BF90

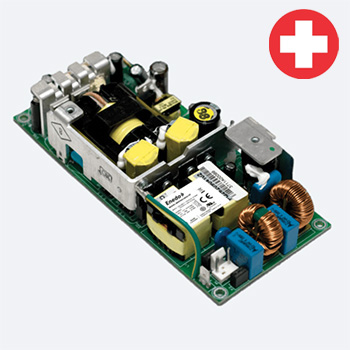

MDP Series - OF

Enedo200 to 400Open Frame112 to 484.17 to 20.82xMOPP, CE, CUL, UL, 60601-1 3rd Edition, ANSI, AAMI, ES, EN, CB, CSA, IEC2xMOPP90264260 to 300 90 to 93.5

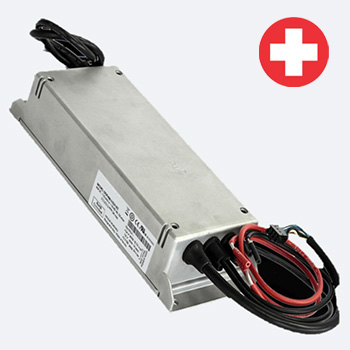

MDP Series - SC

Enedo400 to 600Enclosed1, 212 to 488.3 to 33.360601-1 3rd Edition, AAMI, ANSI, CB, CE, CSA, CUL, EN, ES, IEC, UL, 60950-1, IP672xMOPP85 to 9026450 to 130Type BF89 to 90

MDP Series - UC

Enedo400 to 1000U-Bracket, U-Bracket w/ Fan112 to 485.2 to 41.72xMOPP, 60601-1 3rd Edition, AAMI, ANSI, CE, CSA, CUL, EN, ES, IEC, UL2xMOPP85 to 90264130 to 300Type BF90

MDP Series - VC

Enedo400Enclosed w/ Fan112 to 488.3 to 33.32xMOPP, CE, CUL, UL, 60601-1 3rd Edition, ANSI, AAMI, ES, EN2xMOPP90264300 90

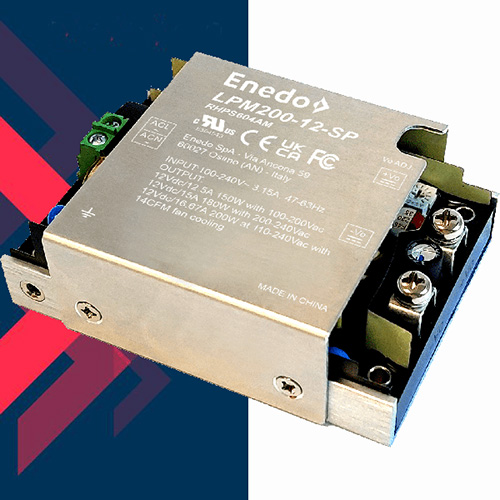

LPM200

Enedo

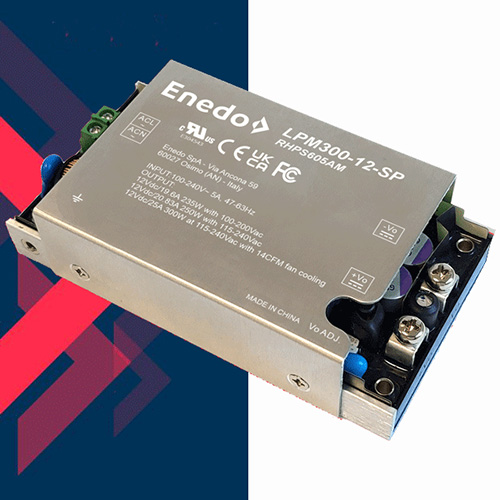

LPM300

Enedo
